- Lifecycle status Active
- RoHS RoHS Compliant

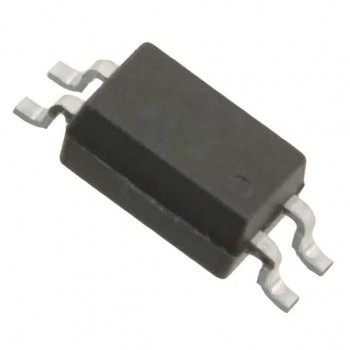

- DescriptionOPTOISOLATOR 3.75KV TRANS 4SOP
- CategoryOptoisolators - Transistor, Photovoltaic Output
- Datasheet TCMT1114 Datasheet
-
ECAD Model
- Share
In Stock: 200
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- Number of Channels:1
- Voltage - Isolation:3750Vrms
- Current Transfer Ratio (Min):160% @ 10mA
- Current Transfer Ratio (Max):320% @ 10mA
- Turn On / Turn Off Time (Typ):5µs, 3µs
- Rise / Fall Time (Typ):3µs, 4µs
- Input Type:DC
- Output Type:Transistor
- Voltage - Output (Max):70V
- Current - Output / Channel:50mA
- Voltage - Forward (Vf) (Typ):1.15V
- Current - DC Forward (If) (Max):50 mA
- Vce Saturation (Max):300mV
- Operating Temperature:-40°C ~ 110°C
- Mounting Type:Surface Mount
- Package / Case:4-SOIC (0.173", 4.40mm Width)
- Supplier Device Package:4-SOP
