TMUX6208PWR
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- Description36-V, LOW-RON, 8:1 PRECISION MUL
- CategoryInterface - Analog Switches, Multiplexers, Demultiplexers
-
ECAD Model
- Share
In Stock: 2,139
Can ship immediately
Pricing:
- 1$6.04
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Switch Circuit:-
- Multiplexer/Demultiplexer Circuit:8:1
- Number of Circuits:1
- On-State Resistance (Max):6.2Ohm
- Channel-to-Channel Matching (ΔRon):200mOhm
- Voltage - Supply, Single (V+):4.5V ~ 36V, ±4.5V ~ 16V
- Voltage - Supply, Dual (V±):4.5V ~ 36V, ±4.5V ~ 16V
- Switch Time (Ton, Toff) (Max):200ns, 290ns
- -3db Bandwidth:30MHz
- Charge Injection:2pC
- Channel Capacitance (CS(off), CD(off)):15pF, 138pF
- Current - Leakage (IS(off)) (Max):40pA
- Crosstalk:-65dB @ 1MHz
- Operating Temperature:-40°C ~ 125°C (TA)
- Mounting Type:Surface Mount
- Package / Case:16-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package:16-TSSOP
Related Products

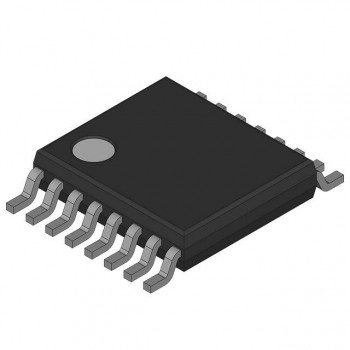

QUAD SPST SWITCH
- 1: $3.24000
QUAD SPST SWITCH
- 1: $3.24000

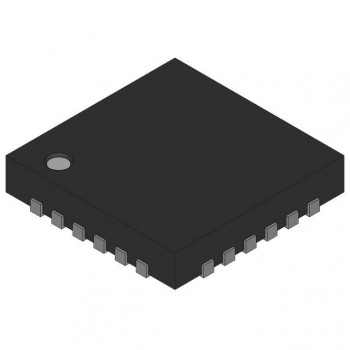

I2C, TRIPLE 4:1 MUX
