ISL84780IRZ

Technical Details

• Series:-
• Package:Tube
• Part Status:Obsolete
• Switch Circuit:SPDT
• Multiplexer/Demultiplexer Circuit:2:1
• Number of Circuits:4
• On-State Resistance (Max):600mOhm
• Channel-to-Channel Matching (ΔRon):130mOhm
• Voltage - Supply, Single (V+):1.65V ~ 3.6V
• Voltage - Supply, Dual (V±):-

• Switch Time (Ton, Toff) (Max):20ns, 14ns
• -3db Bandwidth:-
• Charge Injection:-97pC
• Channel Capacitance (CS(off), CD(off)):62pF
• Current - Leakage (IS(off)) (Max):3nA
• Crosstalk:-98dB @ 100kHz
• Operating Temperature:-40°C ~ 85°C (TA)
• Mounting Type:Surface Mount

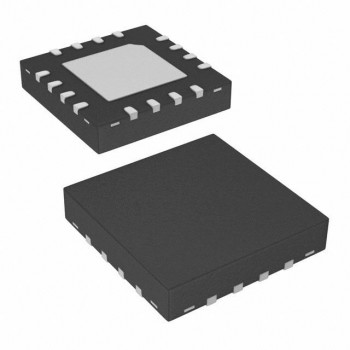

• Package / Case:16-WFQFN Exposed Pad
• Supplier Device Package:16-TQFN (3x3)
