In Stock: 4,086

Can ship immediately

Pricing:
  • 1$3.49

Quote It

Technical Details

  • Series:-
  • Package:Tube
  • Part Status:Obsolete
  • Switch Circuit:SPDT
  • Multiplexer/Demultiplexer Circuit:2:1
  • Number of Circuits:4
  • On-State Resistance (Max):35Ohm
  • Channel-to-Channel Matching (ΔRon):500mOhm
  • Voltage - Supply, Single (V+):2V ~ 12V
  • Voltage - Supply, Dual (V±):±2V ~ 6V



  • Switch Time (Ton, Toff) (Max):130ns, 75ns
  • -3db Bandwidth:-
  • Charge Injection:5pC
  • Channel Capacitance (CS(off), CD(off)):12pF, 12pF
  • Current - Leakage (IS(off)) (Max):200pA
  • Crosstalk:-92dB @ 1MHz
  • Operating Temperature:-40°C ~ 85°C (TA)
  • Mounting Type:Surface Mount
  • Package / Case:20-SOIC (0.295", 7.50mm Width)
  • Supplier Device Package:20-SOIC

Related Products


ADG413BN

PRECISION QUAD SPST SWITCH

  • 1: $3.50000

ADG609BR

DIFFERENTIAL MUX,4 CHANNEL

ADG609BR Datasheet
  • 1: $3.52000

DS90CP02SP

CROSS POINT SWITCH, 1 FUNC, 2 CH

  • 1: $3.52000

DG308ADY+T

QUAD, SPST ANALOG SWITCH

DG308ADY+T Datasheet
  • 1: $3.54000

ADG509AKR-REEL

DIFFERENTIAL MUX,4 CHANNEL

ADG509AKR-REEL Datasheet
  • 1: $3.55000

MAX395ENG+

8-CH SPST SWITCH

  • 1: $3.55000

ADG661BRU

QUAD SPST SWITCH

  • 1: $3.56000

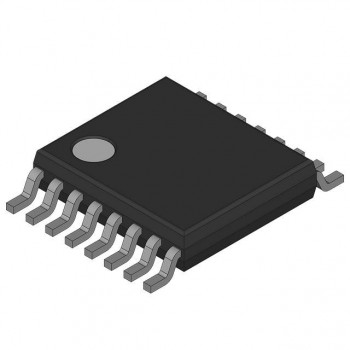

ADG662BRU
