DG405CJ+
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionDPST, 2 FUNC, 1 CHANNEL, CMOS, P
- CategoryInterface - Analog Switches, Multiplexers, Demultiplexers
- Datasheet DG405CJ+ Datasheet
-
ECAD Model
- Share
In Stock: 907
Can ship immediately
Pricing:
- 1$4.51
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Switch Circuit:DPST - NO
- Multiplexer/Demultiplexer Circuit:2:1
- Number of Circuits:2
- On-State Resistance (Max):45Ohm
- Channel-to-Channel Matching (ΔRon):500mOhm
- Voltage - Supply, Single (V+):10V ~ 30V
- Voltage - Supply, Dual (V±):±4.5V ~ 20V
- Switch Time (Ton, Toff) (Max):150ns, 100ns
- -3db Bandwidth:-
- Charge Injection:10pC
- Channel Capacitance (CS(off), CD(off)):12pF, 12pF
- Current - Leakage (IS(off)) (Max):500pA
- Crosstalk:-90dB @ 1MHz
- Operating Temperature:0°C ~ 70°C (TA)
- Mounting Type:Through Hole
- Package / Case:16-DIP (0.300", 7.62mm)
- Supplier Device Package:16-PDIP
Related Products

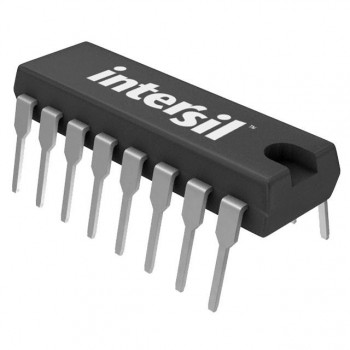

FAULT PROTECTED ANALOG MUX
