ADG436BN
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionDUAL SPDT SWITCH
- CategoryInterface - Analog Switches, Multiplexers, Demultiplexers
- Datasheet ADG436BN Datasheet
-
ECAD Model
- Share
In Stock: 4,217
Can ship immediately
Pricing:
- 1$4.78
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Obsolete
- Switch Circuit:SPDT
- Multiplexer/Demultiplexer Circuit:2:1
- Number of Circuits:2
- On-State Resistance (Max):12Ohm (Typ)
- Channel-to-Channel Matching (ΔRon):1Ohm
- Voltage - Supply, Single (V+):3V ~ 30V
- Voltage - Supply, Dual (V±):±3V ~ 20V
- Switch Time (Ton, Toff) (Max):70ns, 60ns (Typ)
- -3db Bandwidth:-
- Charge Injection:10pC
- Channel Capacitance (CS(off), CD(off)):13pF
- Current - Leakage (IS(off)) (Max):250pA
- Crosstalk:-90dB @ 1MHz
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Through Hole
- Package / Case:16-DIP (0.300", 7.62mm)
- Supplier Device Package:16-PDIP
Related Products

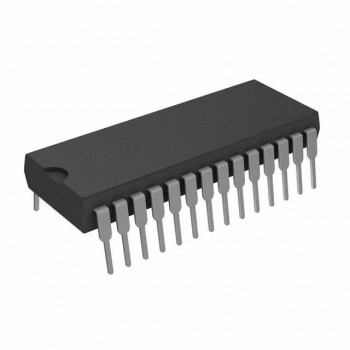

SINGLE-ENDED MUX, 16 CHNL
