In Stock: 421

Can ship immediately

Pricing:
  • 1$6.51

Quote It

Technical Details

  • Series:-
  • Package:Tube
  • Part Status:Obsolete
  • Switch Circuit:SPST - NC
  • Multiplexer/Demultiplexer Circuit:1:1
  • Number of Circuits:2
  • On-State Resistance (Max):50Ohm
  • Channel-to-Channel Matching (ΔRon):-
  • Voltage - Supply, Single (V+):-
  • Voltage - Supply, Dual (V±):±5V ~ 18V



  • Switch Time (Ton, Toff) (Max):300ns, 250ns
  • -3db Bandwidth:-
  • Charge Injection:12pC
  • Channel Capacitance (CS(off), CD(off)):14pF, 14pF
  • Current - Leakage (IS(off)) (Max):5nA
  • Crosstalk:-74dB @ 500kHz
  • Operating Temperature:0°C ~ 70°C (TA)
  • Mounting Type:Through Hole
  • Package / Case:14-DIP (0.300", 7.62mm)
  • Supplier Device Package:14-PDIP

Related Products


MAX4111CSA

BUFFERED VIDEO SWITCHES

  • 1: $6.53000

DG423DJ

ANALOG SWITCHES WITH LATCHES

  • 1: $6.53000

HI9P0548-5

ANALOG MUX WITH PROTECTION

HI9P0548-5 Datasheet
  • 1: $6.58000

HI3-5043-5

SPDT ANALOG SWITCH, 2 CHANNEL, 5

HI3-5043-5 Datasheet
  • 1: $6.59000

MAX358EWE

ANALOG MUX

  • 1: $6.59000

ADG528AKP

SINGLE-ENDED MUX,8 CHANNEL

ADG528AKP Datasheet
  • 1: $6.67000
  • 49: $6.67000

GY4102ACDA

SPDT, 1 FUNC, BIPOLAR

  • 1: $6.69000

HI9P0201-9

QUAD SPST, CMOS ANALOG SWITCH

HI9P0201-9 Datasheet
  • 1: $6.71000

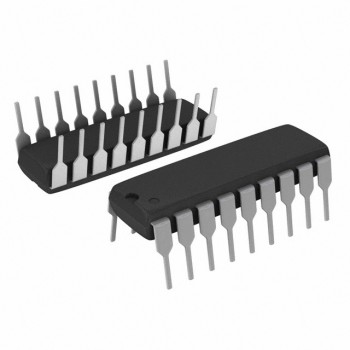

ADG529AKN
