ADG5208SRU-EP-RL7

Rochester Electronics
In Stock: 2,887

Can ship immediately

Pricing:
  • 1$8.04
  • 1,000$8.04

Quote It

Technical Details

  • Series:-
  • Package:Bulk
  • Part Status:Obsolete
  • Switch Circuit:-
  • Multiplexer/Demultiplexer Circuit:8:1
  • Number of Circuits:1
  • On-State Resistance (Max):160Ohm
  • Channel-to-Channel Matching (ΔRon):3.5Ohm
  • Voltage - Supply, Single (V+):9V ~ 40V
  • Voltage - Supply, Dual (V±):±9V ~ 22V



  • Switch Time (Ton, Toff) (Max):140ns, 185ns
  • -3db Bandwidth:121MHz
  • Charge Injection:0.4pC
  • Channel Capacitance (CS(off), CD(off)):2.8pF, 33pF
  • Current - Leakage (IS(off)) (Max):100pA
  • Crosstalk:-80dB @ 1MHz
  • Operating Temperature:-55°C ~ 125°C (TA)
  • Mounting Type:Surface Mount
  • Package / Case:16-TSSOP (0.173", 4.40mm Width)
  • Supplier Device Package:16-TSSOP

Related Products


ADG5209SRU-EP-RL7

DIFFERENTIAL MUX,4 CHANNEL

ADG5209SRU-EP-RL7 Datasheet
  • 1: $8.04000
  • 1000: $8.04000

ADG406BN

SINGLE-ENDED MUX,16 CHANNEL

ADG406BN Datasheet
  • 1: $8.12000

MAX328EWE

CMOS ANALOG MUX

  • 1: $8.14000

LF13333D

SPST, 4 FUNC, BIMOS

  • 1: $8.14000

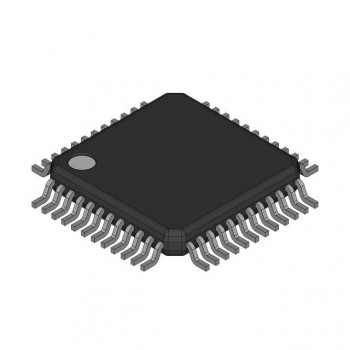

ADG732BSU

SINGLE-ENDED MUX,32 CHANNEL

  • 1: $8.16000

ADG511BRZ

IC SWITCH QUAD SPST 16SOIC

ADG511BRZ Datasheet
  • 1: $8.20000
  • 48: $7.06596
  • 144: $6.13527

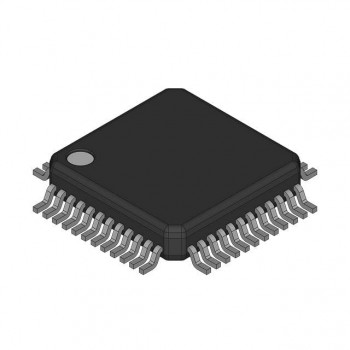

ADG725BSU

DIFFERENTIAL MUX,16 CHANNEL

  • 1: $8.30000

MAX333ACUP+

IC SWITCH QUAD SPDT 20TSSOP

  • 1: $8.33000
  • 10: $7.52854
  • 74: $7.17832

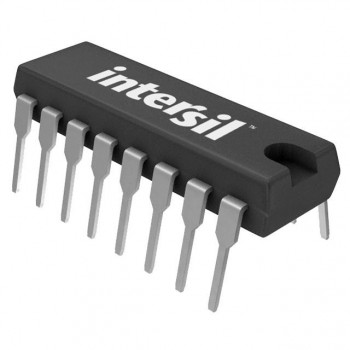

HI3-0509-5
