DG180AA
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionDUAL SPST HIGH-SPEED DRIVER
- CategoryInterface - Analog Switches, Multiplexers, Demultiplexers
- Datasheet DG180AA Datasheet
-
ECAD Model
- Share
In Stock: 465
Can ship immediately
Pricing:
- 1$20.31
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Obsolete
- Switch Circuit:SPST - NC
- Multiplexer/Demultiplexer Circuit:1:1
- Number of Circuits:2
- On-State Resistance (Max):10Ohm
- Channel-to-Channel Matching (ΔRon):-
- Voltage - Supply, Single (V+):-
- Voltage - Supply, Dual (V±):±15V
- Switch Time (Ton, Toff) (Max):400ns, 200ns
- -3db Bandwidth:-
- Charge Injection:-
- Channel Capacitance (CS(off), CD(off)):21pF, 17pF
- Current - Leakage (IS(off)) (Max):10nA
- Crosstalk:-
- Operating Temperature:-55°C ~ 125°C (TA)
- Mounting Type:Through Hole

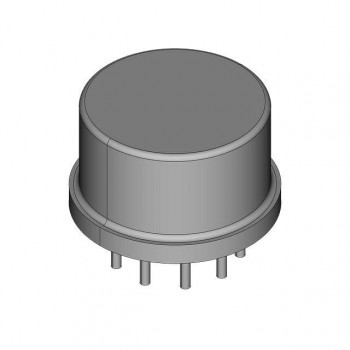

- Package / Case:TO-100-10 Metal Can
- Supplier Device Package:TO-100-10
