SN74LV4066ADBR
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionSN74LV4066A QUADRUPLE BILATERAL
- CategoryInterface - Analog Switches, Multiplexers, Demultiplexers
-
ECAD Model
- Share
In Stock: 3,174
Can ship immediately
Pricing:
- 1$0.19
- 2,000$0.19
- 6,000$0.1805
- 10,000$0.17371
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Switch Circuit:SPST - NO
- Multiplexer/Demultiplexer Circuit:1:1
- Number of Circuits:4
- On-State Resistance (Max):75Ohm
- Channel-to-Channel Matching (ΔRon):2Ohm
- Voltage - Supply, Single (V+):2V ~ 5.5V
- Voltage - Supply, Dual (V±):-
- Switch Time (Ton, Toff) (Max):12ns, 12ns
- -3db Bandwidth:50MHz
- Charge Injection:-
- Channel Capacitance (CS(off), CD(off)):0.5pF, 5.5pF
- Current - Leakage (IS(off)) (Max):100nA
- Crosstalk:-45dB @ 1MHz
- Operating Temperature:-40°C ~ 85°C (TA)
- Mounting Type:Surface Mount
- Package / Case:14-SSOP (0.209", 5.30mm Width)
- Supplier Device Package:14-SSOP
Related Products
SN74LVC2G53 SINGLE POLE, DOUBLE-
- 1: $0.20000
- 3000: $0.20000
- 6000: $0.18667

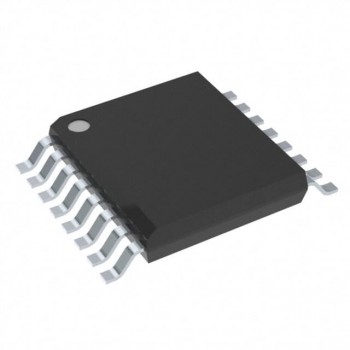

SN74LV4053A TRIPLE 2-CHANNEL ANA
- 1: $0.20000
- 2000: $0.20000
- 6000: $0.18710
SN74LV4052A-Q1 AUTOMOTIVE CATALO
- 1: $0.20000
- 2000: $0.19530
- 6000: $0.18270

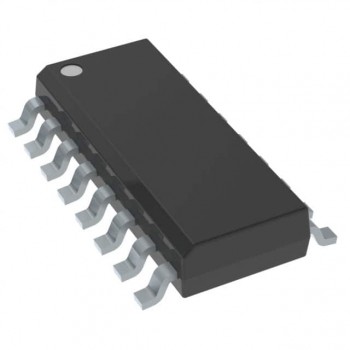

SN74LV4053A TRIPLE 2-CHANNEL ANA
