NLV74HC4066ADR2G
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionSPST, 4 FUNC, 1 CHANNEL, CMOS, P
- CategoryInterface - Analog Switches, Multiplexers, Demultiplexers
- Datasheet NLV74HC4066ADR2G Datasheet
-
ECAD Model
- Share
In Stock: 9,779
Can ship immediately
Pricing:
- 1$0.22
- 2,500$0.08127
- 5,000$0.07603
- 12,500$0.07079
- 25,000$0.06711
Quote It
Technical Details
- Series:Automotive, AEC-Q100
- Package:Bulk
- Part Status:Active
- Switch Circuit:SPST - NO
- Multiplexer/Demultiplexer Circuit:1:1
- Number of Circuits:4
- On-State Resistance (Max):70Ohm
- Channel-to-Channel Matching (ΔRon):15Ohm
- Voltage - Supply, Single (V+):2V ~ 12V
- Voltage - Supply, Dual (V±):-
- Switch Time (Ton, Toff) (Max):-
- -3db Bandwidth:160MHz
- Charge Injection:-
- Channel Capacitance (CS(off), CD(off)):10pF
- Current - Leakage (IS(off)) (Max):100nA
- Crosstalk:-80dB @ 1MHz
- Operating Temperature:-55°C ~ 125°C (TA)
- Mounting Type:Surface Mount
- Package / Case:14-SOIC (0.154", 3.90mm Width)
- Supplier Device Package:14-SOIC
Related Products

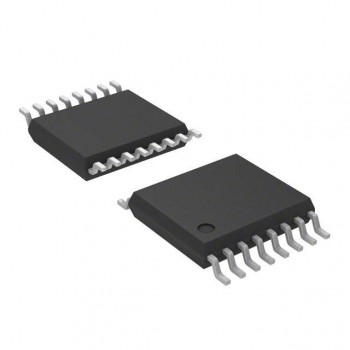

SN74HC4851 8-CHANNEL ANALOG MULT
