MC74LVXT4053DG
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionANALOG MULTIPLEXER/DEMULTIPLEXER
- CategoryInterface - Analog Switches, Multiplexers, Demultiplexers
- Datasheet MC74LVXT4053DG Datasheet
-
ECAD Model
- Share
In Stock: 12,919
Can ship immediately
Pricing:
- 1$0.29
- 864$0.29
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Switch Circuit:SPDT
- Multiplexer/Demultiplexer Circuit:2:1
- Number of Circuits:3
- On-State Resistance (Max):26Ohm
- Channel-to-Channel Matching (ΔRon):10Ohm
- Voltage - Supply, Single (V+):2.5V ~ 6V
- Voltage - Supply, Dual (V±):±6V
- Switch Time (Ton, Toff) (Max):-
- -3db Bandwidth:80MHz
- Charge Injection:12pC
- Channel Capacitance (CS(off), CD(off)):10pF
- Current - Leakage (IS(off)) (Max):100nA
- Crosstalk:-
- Operating Temperature:-55°C ~ 125°C (TA)
- Mounting Type:Surface Mount
- Package / Case:16-SOIC (0.154", 3.90mm Width)
- Supplier Device Package:16-SOIC
Related Products
SN74HC4852-Q1 AUTOMOTIVE CATALOG
- 1: $0.29000
- 2000: $0.28855
- 6000: $0.26865
SINGLE-ENDED MULTIPLEXER, 8 CHAN
- 1: $0.29000

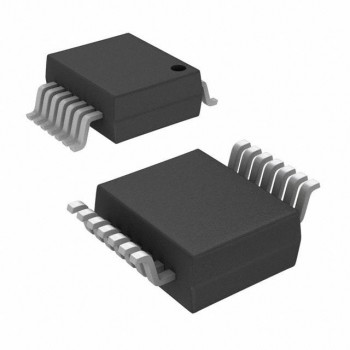

TS3A5017 14-OHM DUAL SP4T ANALOG
