MAX338CSE
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- Description8-CHANNEL ANALOG MUX
- CategoryInterface - Analog Switches, Multiplexers, Demultiplexers
- Datasheet MAX338CSE Datasheet
-
ECAD Model
- Share
In Stock: 109
Can ship immediately
Pricing:
- 1$3.81
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Obsolete
- Switch Circuit:-
- Multiplexer/Demultiplexer Circuit:8:1
- Number of Circuits:1
- On-State Resistance (Max):400Ohm
- Channel-to-Channel Matching (ΔRon):4Ohm
- Voltage - Supply, Single (V+):4.5V ~ 30V
- Voltage - Supply, Dual (V±):±4.5V ~ 20V
- Switch Time (Ton, Toff) (Max):500ns, 500ns
- -3db Bandwidth:-
- Charge Injection:1.5pC
- Channel Capacitance (CS(off), CD(off)):3pF, 11pF
- Current - Leakage (IS(off)) (Max):20pA
- Crosstalk:-92dB @ 100kHz
- Operating Temperature:0°C ~ 70°C (TA)
- Mounting Type:Surface Mount
- Package / Case:16-SOIC (0.154", 3.90mm Width)
- Supplier Device Package:16-SOIC
Related Products
DG417, SPST ANALOG SWITCH
- 1: $4.04000

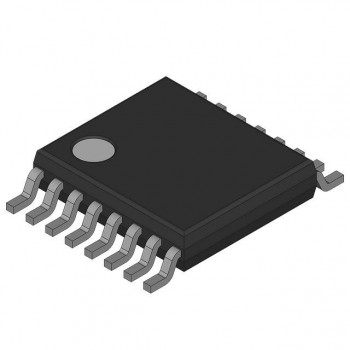

LVDS 2 X 2 XPOINT SWITCH
