ADG5404BRUZ
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC MUX DUAL 4CH LATCHUP 14TSSOP
- CategoryInterface - Analog Switches, Multiplexers, Demultiplexers
- Datasheet ADG5404BRUZ Datasheet
-
ECAD Model
- Share
In Stock: 111
Can ship immediately
Pricing:
- 1$6.74
- 96$5.72581
- 192$4.96242
- 576$4.22441
- 1,056$3.56275
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Active
- Switch Circuit:-
- Multiplexer/Demultiplexer Circuit:4:1
- Number of Circuits:1
- On-State Resistance (Max):10Ohm
- Channel-to-Channel Matching (ΔRon):350mOhm
- Voltage - Supply, Single (V+):9V ~ 40V
- Voltage - Supply, Dual (V±):±9V ~ 22V
- Switch Time (Ton, Toff) (Max):185ns, 142ns
- -3db Bandwidth:54MHz
- Charge Injection:290pC
- Channel Capacitance (CS(off), CD(off)):18pF, 88pF
- Current - Leakage (IS(off)) (Max):250pA
- Crosstalk:-58dB @ 1MHz
- Operating Temperature:-40°C ~ 125°C (TA)
- Mounting Type:Surface Mount
- Package / Case:14-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package:14-TSSOP
Related Products
DIFFERENTIAL MUX,4 CHANNEL
- 1: $6.84000
CMOS ANALOG SWITCH
- 1: $6.98000
ANALOG MUX
- 1: $7.05000
QUAD SPDT CMOS ANALOG SWITCH
- 1: $7.19000
DUAL, HIGH-SPEED ANALOG SWITCH
- 1: $7.27000

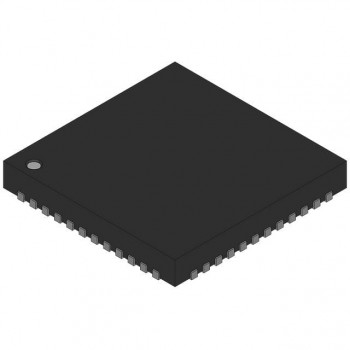

SINGLE-ENDED MUX,32 CHANNEL
