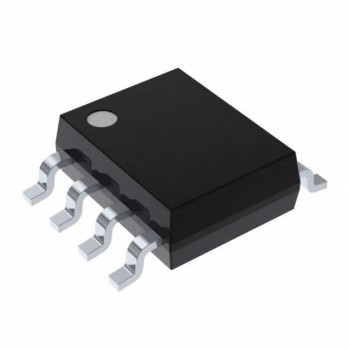

MAX4543CSA
Maxim Integrated
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC SW ANLG SPST N/O-N/C 8-SOIC
- CategoryInterface - Analog Switches, Multiplexers, Demultiplexers
- Datasheet MAX4543CSA Datasheet
-
ECAD Model
- Share
In Stock: 175
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Obsolete
- Switch Circuit:SPST - NO/NC
- Multiplexer/Demultiplexer Circuit:1:1
- Number of Circuits:2
- On-State Resistance (Max):60Ohm
- Channel-to-Channel Matching (ΔRon):800mOhm
- Voltage - Supply, Single (V+):2.7V ~ 12V
- Voltage - Supply, Dual (V±):-
- Switch Time (Ton, Toff) (Max):100ns, 75ns
- -3db Bandwidth:-
- Charge Injection:1pC
- Channel Capacitance (CS(off), CD(off)):8pF, 8pF
- Current - Leakage (IS(off)) (Max):100pA
- Crosstalk:-90dB @ 1MHz
- Operating Temperature:0°C ~ 70°C (TA)
- Mounting Type:Surface Mount
- Package / Case:8-SOIC (0.154", 3.90mm Width)
- Supplier Device Package:8-SOIC
