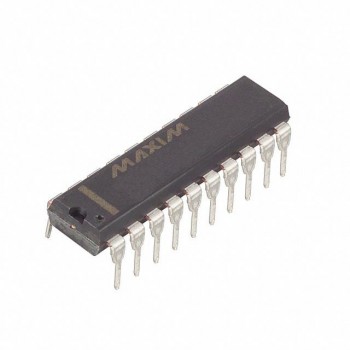

MAX4530CPP+

Technical Details

• Series:-
• Package:Tube
• Part Status:Obsolete
• Switch Circuit:-
• Multiplexer/Demultiplexer Circuit:8:1
• Number of Circuits:1
• On-State Resistance (Max):75Ohm
• Channel-to-Channel Matching (ΔRon):1Ohm
• Voltage - Supply, Single (V+):2V ~ 12V
• Voltage - Supply, Dual (V±):±2V ~ 6V

• Switch Time (Ton, Toff) (Max):150ns, 100ns
• -3db Bandwidth:-
• Charge Injection:1.5pC
• Channel Capacitance (CS(off), CD(off)):3pF, 15pF
• Current - Leakage (IS(off)) (Max):1nA
• Crosstalk:-92dB @ 1MHz
• Operating Temperature:0°C ~ 70°C (TA)
• Mounting Type:Through Hole
• Package / Case:20-DIP (0.300", 7.62mm)
• Supplier Device Package:20-PDIP
