- Lifecycle status Active
- RoHS RoHS Compliant

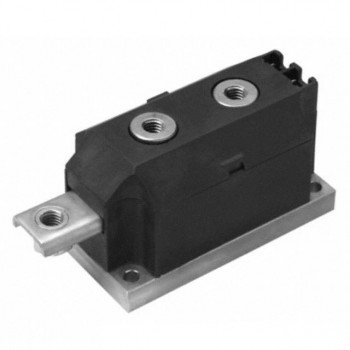

- DescriptionDIODE MODULE 1.2KV 270A MAGNAPAK
- CategoryDiodes - Rectifiers - Arrays
- Datasheet VSKC270-12 Datasheet
-
ECAD Model
- Share
In Stock: 199
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Obsolete
- Diode Configuration:1 Pair Common Cathode
- Diode Type:Standard
- Voltage - DC Reverse (Vr) (Max):1200 V
- Current - Average Rectified (Io) (per Diode):270A
- Voltage - Forward (Vf) (Max) @ If:-
- Speed:Standard Recovery >500ns, > 200mA (Io)
- Reverse Recovery Time (trr):-
- Current - Reverse Leakage @ Vr:50 mA @ 1200 V
- Operating Temperature - Junction:-
- Mounting Type:Chassis Mount
- Package / Case:3-MAGN-A-PAK™
- Supplier Device Package:MAGN-A-PAK®
