MAX5813AUD+
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionULTRA-SMALL, QUAD-CHANNEL, 8-/10
- CategoryData Acquisition - Digital to Analog Converters (DAC)
- Datasheet MAX5813AUD+ Datasheet
-
ECAD Model
- Share
In Stock: 6,010
Can ship immediately
Pricing:
- 1$2.1
- 10$2.01304
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Obsolete
- Number of Bits:8
- Number of D/A Converters:4
- Settling Time:2.2µs (Typ)
- Output Type:Voltage - Buffered
- Differential Output:No
- Data Interface:I²C
- Reference Type:External, Internal
- Voltage - Supply, Analog:2.7V ~ 5.5V
- Voltage - Supply, Digital:2.7V ~ 5.5V
- INL/DNL (LSB):±0.05, ±0.05
- Architecture:R-2R
- Operating Temperature:-40°C ~ 125°C
- Package / Case:14-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package:14-TSSOP
- Mounting Type:Surface Mount
Related Products
DAC7551 12-BIT, ULTRALOW GLITCH,
- 1: $2.10000
- 250: $2.10000
TLV5606 10-BIT, 3 OR 9 US DAC, S
- 1: $2.15000
- 2500: $1.93382

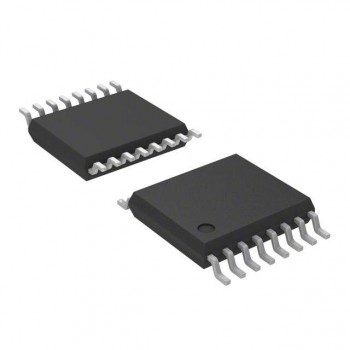

TLC7524 8-BIT, 0.1 US MDAC, PARA
