AD5684RBCPZ-RL7
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionD/A CONVERTER, SERIAL INPUT LOAD
- CategoryData Acquisition - Digital to Analog Converters (DAC)
- Datasheet AD5684RBCPZ-RL7 Datasheet
-
ECAD Model
- Share
In Stock: 5,656
Can ship immediately
Pricing:
- 1$7.36
- 1,500$4.70876
Quote It
Technical Details
- Series:nanoDAC+®
- Package:Bulk
- Part Status:Active
- Number of Bits:12
- Number of D/A Converters:4
- Settling Time:7µs
- Output Type:Voltage - Buffered
- Differential Output:No
- Data Interface:SPI, DSP
- Reference Type:External, Internal
- Voltage - Supply, Analog:2.7V ~ 5.5V
- Voltage - Supply, Digital:1.8V ~ 5.5V
- INL/DNL (LSB):±0.12, ±1 (Max)
- Architecture:String DAC
- Operating Temperature:-40°C ~ 105°C
- Package / Case:16-WFQFN Exposed Pad, CSP
- Supplier Device Package:16-LFCSP-WQ (3x3)
- Mounting Type:Surface Mount
Related Products
DAC8043 CMOS 12-BIT SERIAL INPUT
- 1: $7.37000
- 2500: $6.46620
TLV5619 12-BIT, SINGLE CHANNEL D
- 1: $7.41000
- 2000: $6.40000

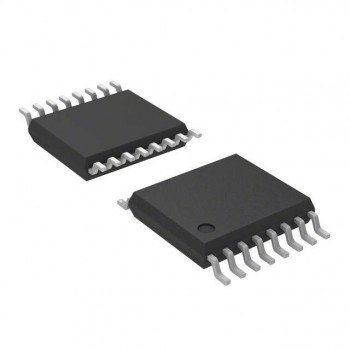

DAC8165 14-BIT, QUAD CHANNEL, UL
