AD5686ACPZ-RL7
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionD/A CONVERTER, SERIAL INPUT LOAD
- CategoryData Acquisition - Digital to Analog Converters (DAC)
- Datasheet AD5686ACPZ-RL7 Datasheet
-
ECAD Model
- Share
In Stock: 3,915
Can ship immediately
Pricing:
- 1$10.48
- 1,500$10.48
Quote It
Technical Details
- Series:nanoDAC+®
- Package:Bulk
- Part Status:Active
- Number of Bits:16
- Number of D/A Converters:4
- Settling Time:8µs
- Output Type:Voltage - Buffered
- Differential Output:No
- Data Interface:SPI
- Reference Type:External
- Voltage - Supply, Analog:2.7V ~ 5.5V
- Voltage - Supply, Digital:1.8V ~ 5.5V
- INL/DNL (LSB):±2, ±1 (Max)
- Architecture:String DAC
- Operating Temperature:-40°C ~ 105°C
- Package / Case:16-WFQFN Exposed Pad, CSP
- Supplier Device Package:16-LFCSP-WQ (3x3)
- Mounting Type:Surface Mount
Related Products
DAC5652 DUAL-CHANNEL, 10-BIT, 27
- 1: $10.62000
- 1000: $9.53876
DAC5652A DUAL-CHANNEL, 10-BIT, 2
- 1: $10.62000
- 1000: $9.53876

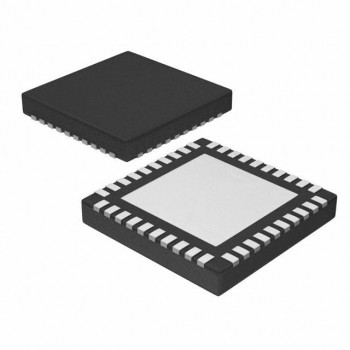

DAC7716 QUAD 12-BIT HIGH ACCURAC
