DAC813JU
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionDAC813 MICROPROCESSOR-COMPATIBLE
- CategoryData Acquisition - Digital to Analog Converters (DAC)
-
ECAD Model
- Share
In Stock: 1,905
Can ship immediately
Pricing:
- 1$21.58
- 20$19.90603
- 40$19.01128
- 100$16.99822
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Number of Bits:12
- Number of D/A Converters:1
- Settling Time:6µs
- Output Type:Voltage - Buffered
- Differential Output:No
- Data Interface:Parallel
- Reference Type:External, Internal
- Voltage - Supply, Analog:±11.4V ~ 16.5V
- Voltage - Supply, Digital:11.4V ~ 16.5V
- INL/DNL (LSB):±0.25, ±0.5
- Architecture:R-2R
- Operating Temperature:-40°C ~ 85°C
- Package / Case:28-SOIC (0.295", 7.50mm Width)
- Supplier Device Package:28-SOIC
- Mounting Type:Surface Mount
Related Products
DAC9881 18-BIT, SINGLE-CHANNEL,
- 1: $22.03000
- 3000: $18.73872

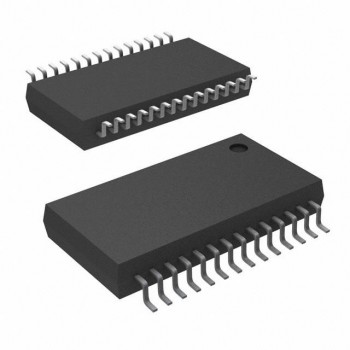

DAC8814 16-BIT, QUAD, SERIAL INP
- 1: $22.10000
- 2000: $18.79416

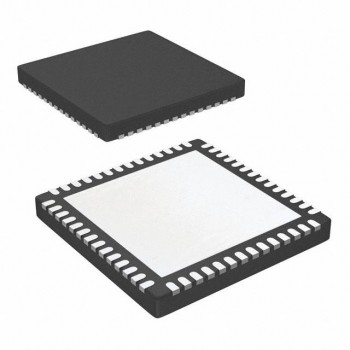

DAC8228 OCTAL, LOW POWER, 14-BIT
- 1: $22.24000
- 250: $21.76452

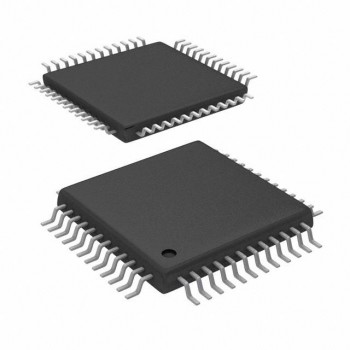

DAC2902 DUAL-CHANNEL, 12-BIT, 12
