DAC7724U
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionDAC7724 12-BIT QUAD VOLTAGE OUTP
- CategoryData Acquisition - Digital to Analog Converters (DAC)
-
ECAD Model
- Share
In Stock: 208
Can ship immediately
Pricing:
- 1$19.88
- 20$18.33851
- 40$17.51421
- 100$15.65967
- 500$14.21736
Quote It
Technical Details
- Series:-
- Package:Bulk
- Part Status:Active
- Number of Bits:12
- Number of D/A Converters:4
- Settling Time:10µs
- Output Type:Voltage - Buffered
- Differential Output:No
- Data Interface:Parallel
- Reference Type:External
- Voltage - Supply, Analog:±14.25V ~ 15.75V
- Voltage - Supply, Digital:5V
- INL/DNL (LSB):±2 (Max), ±1 (Max)
- Architecture:R-2R
- Operating Temperature:-40°C ~ 85°C
- Package / Case:28-SOIC (0.295", 7.50mm Width)
- Supplier Device Package:28-SOIC
- Mounting Type:Surface Mount
Related Products
DAC8218 OCTAL, LOW POWER ,14-BIT
- 1: $20.14000
- 10: $18.57501
- 25: $17.74009
DAC5652-EP ENHANCED-PRODUCT DUAL
- 1: $20.34000
DAC5672-EP ENHANCED PRODUCT DUAL
- 1: $24.46000
- 1000: $24.46000
D/A CONVERTER, 1 FUNC, PARALLEL,
- 1: $24.75000
- 20: $24.75000
D/A CONVERTER, 1 FUNC, PARALLEL,
- 1: $28.65000
- 20: $28.65000

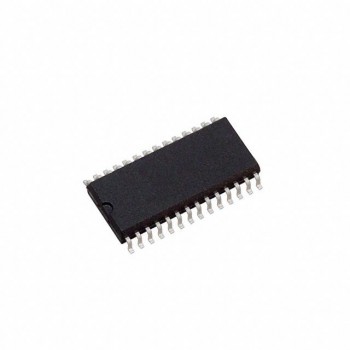

DAC712 16-BIT DIGITAL-TO-ANALOG
