AD5516ABCZ-3
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC DAC 12BIT V-OUT 74CSPBGA
- CategoryData Acquisition - Digital to Analog Converters (DAC)
- Datasheet AD5516ABCZ-3 Datasheet
-
ECAD Model
- Share
In Stock: 129
Can ship immediately
Pricing:
- 1$61.79
- 10$58.04251
Quote It
Technical Details
- Series:-
- Package:Tray
- Part Status:Active
- Number of Bits:12
- Number of D/A Converters:16
- Settling Time:36µs
- Output Type:Voltage - Unbuffered
- Differential Output:No
- Data Interface:SPI, DSP
- Reference Type:External
- Voltage - Supply, Analog:±4.75V ~ 15.75V, 5V
- Voltage - Supply, Digital:2.7V ~ 5.25V
- INL/DNL (LSB):±2 (Max), ±0.5
- Architecture:String DAC
- Operating Temperature:-40°C ~ 85°C
- Package / Case:74-LBGA, CSPBGA
- Supplier Device Package:74-CSPBGA (12x12)
- Mounting Type:Surface Mount
Related Products

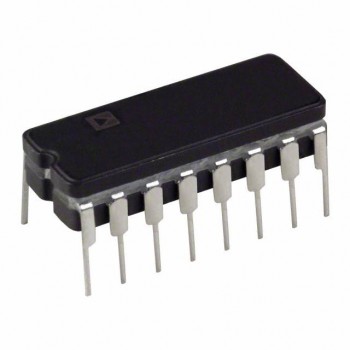

IC DAC 12BIT V-OUT 16CDIP
