AD5761BRUZ-RL7
Linear Technology (Analog Devices, Inc.)
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC DAC 16BIT V-OUT 16TSSOP
- CategoryData Acquisition - Digital to Analog Converters (DAC)
- Datasheet AD5761BRUZ-RL7 Datasheet
-
ECAD Model
- Share
In Stock: 128
Can ship immediately
Pricing:
- 1$5.724
- 1,000$5.724
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Active
- Number of Bits:16
- Number of D/A Converters:1
- Settling Time:9µs
- Output Type:Voltage - Buffered
- Differential Output:No
- Data Interface:SPI
- Reference Type:External
- Voltage - Supply, Analog:4.5V ~ 30V, -16.5V
- Voltage - Supply, Digital:1.7V ~ 5.5V
- INL/DNL (LSB):±2 (Max), ±1 (Max)
- Architecture:R-2R
- Operating Temperature:-40°C ~ 125°C
- Package / Case:16-TSSOP (0.173", 4.40mm Width)
- Supplier Device Package:16-TSSOP
- Mounting Type:Surface Mount
Related Products

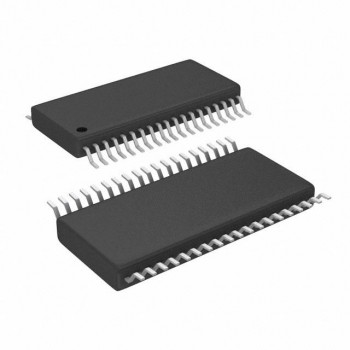

OCTAL 8-BIT VOUT DAC WITH SERIAL
