DAC7714U/1K
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC DAC 12BIT V-OUT 16SOIC
- CategoryData Acquisition - Digital to Analog Converters (DAC)
-
ECAD Model
- Share
In Stock: 147
Can ship immediately
Pricing:
- 1$19.75109
- 1,000$19.01957
Quote It
Technical Details
- Series:-
- Package:Tape & Reel (TR)
- Part Status:Active
- Number of Bits:12
- Number of D/A Converters:4
- Settling Time:10µs
- Output Type:Voltage - Buffered
- Differential Output:No
- Data Interface:SPI
- Reference Type:External
- Voltage - Supply, Analog:±14.25V ~ 15.75V
- Voltage - Supply, Digital:14.25V ~ 15.75V
- INL/DNL (LSB):±2 (Max), ±1 (Max)
- Architecture:R-2R
- Operating Temperature:-40°C ~ 85°C
- Package / Case:16-SOIC (0.295", 7.50mm Width)
- Supplier Device Package:16-SOIC
- Mounting Type:Surface Mount
Related Products

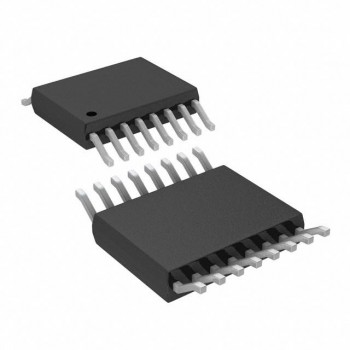

IC DAC 16BIT V-OUT 16TSSOP
