0527461733
Woodhead - Molex- Lifecycle status Active
- RoHS RoHS Compliant

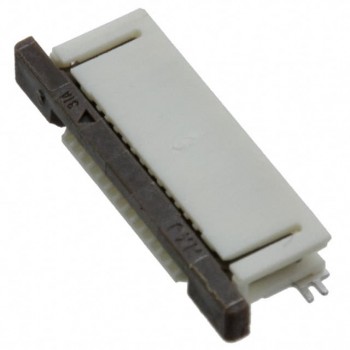

- DescriptionCONN FFC BOTTOM 17POS 0.50MM R/A
- CategoryFFC, FPC (Flat Flexible) Connectors
- Datasheet 0527461733 Datasheet
-
ECAD Model
- Share
In Stock: 114
Can ship immediately
Pricing:
- 1$0.69048
- 1,000$0.69048
Quote It
Technical Details
- Series:Easy-On 52746
- Package:Tape & Reel (TR)
- Part Status:Active
- Flat Flex Type:FFC, FPC
- Mounting Type:Surface Mount, Right Angle
- Connector/Contact Type:Contacts, Bottom
- Number of Positions:17
- Pitch:0.020" (0.50mm)
- Termination:Solder
- FFC, FCB Thickness:0.30mm
- Height Above Board:0.079" (2.00mm)
- Locking Feature:Slide Lock
- Cable End Type:Straight, Tapered
- Contact Material:Phosphor Bronze
- Contact Finish:Tin Bismuth
- Housing Material:Polyamide (PA), Nylon, Glass Filled
- Actuator Material:Polyphenylene Sulfide (PPS), Glass Filled
- Features:Solder Retention, Zero Insertion Force (ZIF)
- Voltage Rating:50V
- Operating Temperature:-40°C ~ 85°C
- Material Flammability Rating:UL94 V-0
