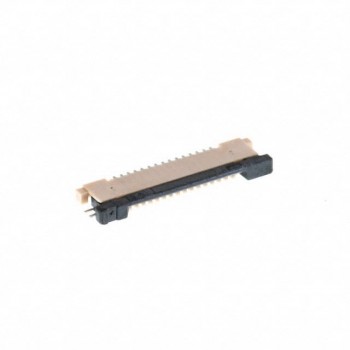

FH33-36S-0.5SH(10)
Hirose- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN FFC BOTTOM 36POS 0.50MM R/A
- CategoryFFC, FPC (Flat Flexible) Connectors
- Datasheet FH33-36S-0.5SH(10) Datasheet
-
ECAD Model
- Share
In Stock: 165
Can ship immediately
Pricing:
- 1$0.9177
- 5,000$0.8778
Quote It
Technical Details
- Series:FH33
- Package:Tape & Reel (TR)
- Part Status:Active
- Flat Flex Type:FFC, FPC
- Mounting Type:Surface Mount, Right Angle
- Connector/Contact Type:Contacts, Bottom
- Number of Positions:36
- Pitch:0.020" (0.50mm)
- Termination:Solder
- FFC, FCB Thickness:0.30mm
- Height Above Board:0.047" (1.20mm)
- Locking Feature:Flip Lock
- Cable End Type:Tapered
- Contact Material:Phosphor Bronze
- Contact Finish:Gold
- Housing Material:Polyamide (PA), Nylon
- Actuator Material:Polyamide (PA), Nylon
- Features:Zero Insertion Force (ZIF)
- Voltage Rating:50V
- Operating Temperature:-55°C ~ 85°C
- Material Flammability Rating:UL94 V-0
