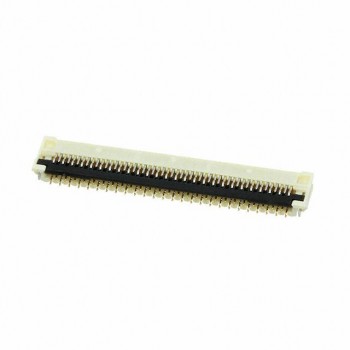

FH39J-61S-0.3SHW(10)
Hirose- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN FPC 61POS .3MM
- CategoryFFC, FPC (Flat Flexible) Connectors
- Datasheet FH39J-61S-0.3SHW(10) Datasheet
-
ECAD Model
- Share
In Stock: 156
Can ship immediately
Pricing:
- 1$1.729
- 5,000$1.729
Quote It
Technical Details
- Series:FH39J
- Package:Tape & Reel (TR)
- Part Status:Active
- Flat Flex Type:FPC
- Mounting Type:Surface Mount, Right Angle
- Connector/Contact Type:Contacts, Top and Bottom
- Number of Positions:61
- Pitch:0.012" (0.30mm)
- Termination:Solder
- FFC, FCB Thickness:0.20mm
- Height Above Board:0.044" (1.12mm)
- Locking Feature:Flip Lock, Backlock
- Cable End Type:Tapered
- Contact Material:Phosphor Bronze
- Contact Finish:Gold
- Housing Material:Liquid Crystal Polymer (LCP), Halogen Free
- Actuator Material:Polyamide (PA), Nylon
- Features:Zero Insertion Force (ZIF)
- Voltage Rating:30V
- Operating Temperature:-55°C ~ 85°C
- Material Flammability Rating:UL94 V-0
