FA5S026HP1R3000
JAE Electronics- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN FPC BOTTOM 26POS 0.50MM R/A
- CategoryFFC, FPC (Flat Flexible) Connectors
- Datasheet FA5S026HP1R3000 Datasheet
-
ECAD Model
- Share
In Stock: 177
Can ship immediately
Pricing:
- 1$2.47797
- 3,000$2.47797
Quote It
Technical Details
- Series:FA5
- Package:Tape & Reel (TR)
- Part Status:Active
- Flat Flex Type:FPC
- Mounting Type:Surface Mount, Right Angle
- Connector/Contact Type:Contacts, Bottom
- Number of Positions:26
- Pitch:0.020" (0.50mm)
- Termination:Solder
- FFC, FCB Thickness:0.30mm
- Height Above Board:0.057" (1.45mm)
- Locking Feature:Flip Lock
- Cable End Type:Tapered
- Contact Material:Copper Alloy
- Contact Finish:Gold
- Housing Material:Liquid Crystal Polymer (LCP), Glass Filled
- Actuator Material:Polyamide (PA), Nylon, Glass Filled
- Features:Solder Retention, Zero Insertion Force (ZIF)
- Voltage Rating:50V
- Operating Temperature:-40°C ~ 85°C
- Material Flammability Rating:UL94 V-0
Related Products

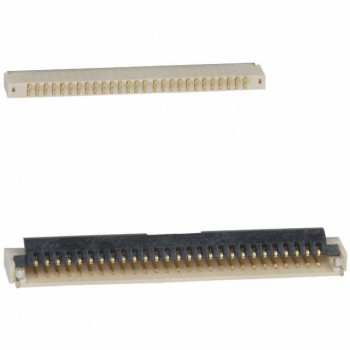

FPC 1.0MM
- 1: $2.47996
FPC 1.0MM
- 1: $2.47996
FPC 1.0MM
- 1: $2.47996
FPC 1.0MM
- 1: $2.48573

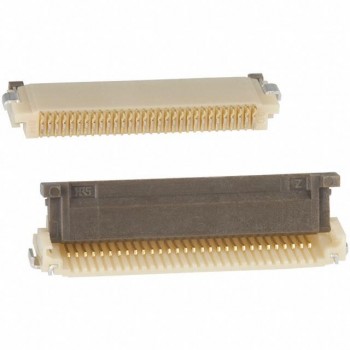

CONN FFC 30POS 0.50MM SMD
