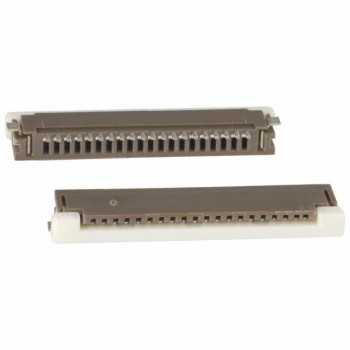

FH10A-20S-1SHB
Hirose
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN FFC FPC TOP 20POS 1MM R/A
- CategoryFFC, FPC (Flat Flexible) Connectors
- Datasheet FH10A-20S-1SHB Datasheet
-
ECAD Model
- Share
In Stock: 151
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:FH10A
- Package:Tube
- Part Status:Obsolete
- Flat Flex Type:FFC, FPC
- Mounting Type:Surface Mount, Right Angle
- Connector/Contact Type:Contacts, Top
- Number of Positions:20
- Pitch:0.039" (1.00mm)
- Termination:Solder
- FFC, FCB Thickness:0.30mm
- Height Above Board:0.118" (3.00mm)
- Locking Feature:Slide Lock
- Cable End Type:Straight
- Contact Material:Phosphor Bronze
- Contact Finish:Solder Plating
- Housing Material:Polybutylene Terephthalate (PBT)
- Actuator Material:-
- Features:Board Guide, Zero Insertion Force (ZIF)
- Voltage Rating:50V
- Operating Temperature:-55°C ~ 85°C
- Material Flammability Rating:UL94 V-0
