0712261025
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN FFC VERT 10POS 1.00MM PCB
- CategoryFFC, FPC (Flat Flexible) Connectors
-
ECAD Model
- Share
In Stock: 120
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:71226
- Package:Tray
- Part Status:Obsolete
- Flat Flex Type:FFC
- Mounting Type:Through Hole
- Connector/Contact Type:Contacts, Vertical - 1 Sided
- Number of Positions:10
- Pitch:0.039" (1.00mm)
- Termination:Kinked Pin
- FFC, FCB Thickness:0.30mm
- Height Above Board:0.236" (6.00mm)
- Locking Feature:Slide Lock
- Cable End Type:Tapered
- Contact Material:Phosphor Bronze
- Contact Finish:Tin
- Housing Material:Polyamide (PA), Nylon, Glass Filled
- Actuator Material:Liquid Crystal Polymer (LCP), Glass Filled
- Features:Zero Insertion Force (ZIF)
- Voltage Rating:125V
- Operating Temperature:-20°C ~ 80°C
- Material Flammability Rating:UL94 V-0
Related Products
CONN FFC VERT 12POS 1.00MM PCB
Call for price

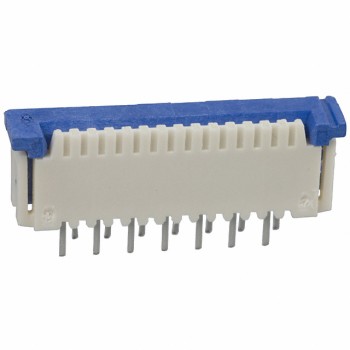

CONN FFC VERT 14POS 1.00MM PCB
Call for price

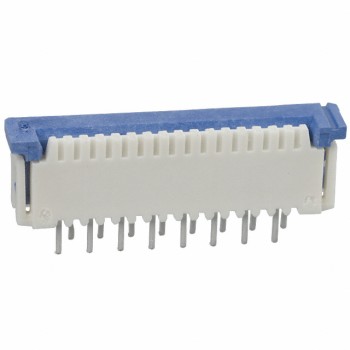

CONN FFC VERT 16POS 1.00MM PCB
Call for price

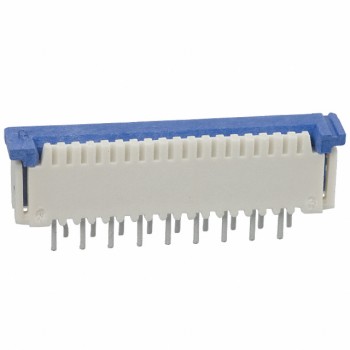

CONN FFC VERT 18POS 1.00MM PCB
Call for price

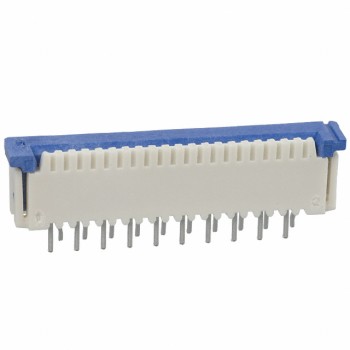

CONN FFC VERT 20POS 1.00MM PCB
Call for price

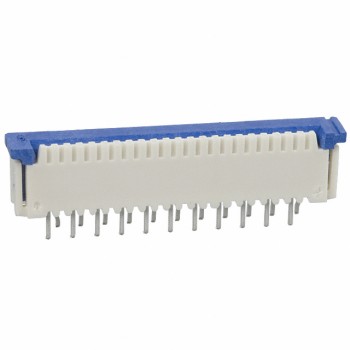

CONN FFC VERT 22POS 1.00MM PCB
Call for price
CONN FFC VERT 24POS 1.00MM PCB
Call for price

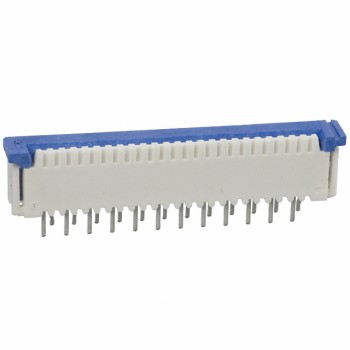

CONN FFC VERT 26POS 1.00MM PCB
Call for price

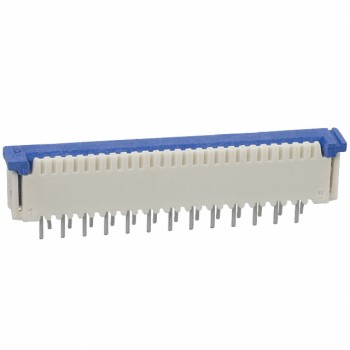

CONN FFC VERT 28POS 1.00MM PCB
Call for price

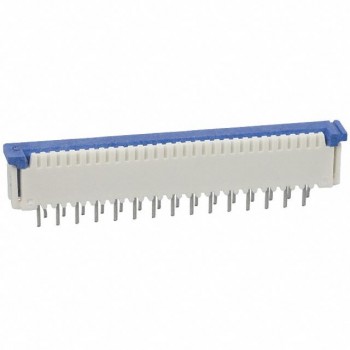

CONN FFC VERT 30POS 1.00MM PCB
