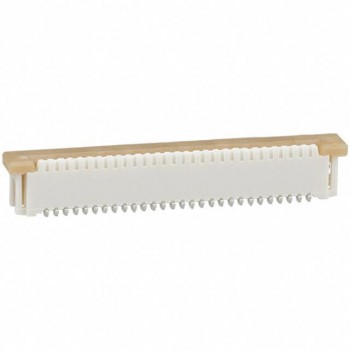

0526100871

Technical Details

• Series:Easy-On 52610
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Obsolete
• Flat Flex Type:-
• Mounting Type:Surface Mount
• Connector/Contact Type:Contacts, Vertical - 1 Sided
• Number of Positions:8
• Pitch:0.039" (1.00mm)
• Termination:Solder
• FFC, FCB Thickness:0.30mm
• Height Above Board:0.226" (5.74mm)

• Locking Feature:Slide Lock
• Cable End Type:Tapered
• Contact Material:Phosphor Bronze
• Contact Finish:Tin Bismuth
• Housing Material:Polyamide (PA46), Nylon 4/6
• Actuator Material:Polyphenylene Sulfide (PPS)
• Features:Zero Insertion Force (ZIF)
• Voltage Rating:125V
• Operating Temperature:-40°C ~ 85°C
• Material Flammability Rating:UL94 V-0
