FH27-60S-0.4SH(05)
Hirose- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN FPC BOTTOM 60POS 0.40MM R/A
- CategoryFFC, FPC (Flat Flexible) Connectors
- Datasheet FH27-60S-0.4SH(05) Datasheet
-
ECAD Model
- Share
In Stock: 141
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:FH27
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- Flat Flex Type:FPC
- Mounting Type:Surface Mount, Right Angle
- Connector/Contact Type:Contacts, Bottom
- Number of Positions:60
- Pitch:0.016" (0.40mm)
- Termination:Solder
- FFC, FCB Thickness:0.20mm
- Height Above Board:0.047" (1.20mm)
- Locking Feature:Flip Lock
- Cable End Type:Notched
- Contact Material:Phosphor Bronze
- Contact Finish:Gold
- Housing Material:Liquid Crystal Polymer (LCP)
- Actuator Material:Liquid Crystal Polymer (LCP)
- Features:Zero Insertion Force (ZIF)
- Voltage Rating:40V
- Operating Temperature:-55°C ~ 85°C
- Material Flammability Rating:UL94 V-0
Related Products

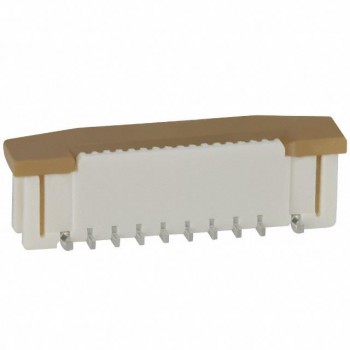

CONN FFC VERT 16POS 0.50MM SMD
Call for price

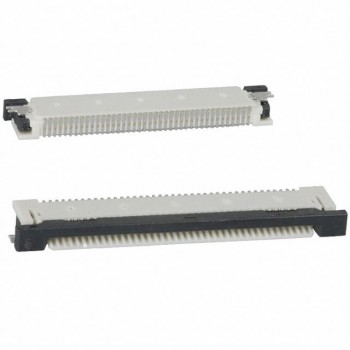

CONN FFC TOP 21POS 0.50MM R/A
Call for price

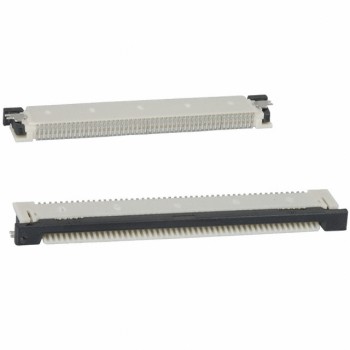

CONN FFC TOP 23POS 0.50MM R/A
