0528922095
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN FFC BOTTOM 20POS 0.50MM R/A
- CategoryFFC, FPC (Flat Flexible) Connectors
- Datasheet 0528922095 Datasheet
-
ECAD Model
- Share
In Stock: 184
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:Easy-On 52892
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Flat Flex Type:FFC, FPC
- Mounting Type:Surface Mount, Right Angle
- Connector/Contact Type:Contacts, Bottom
- Number of Positions:20
- Pitch:0.020" (0.50mm)
- Termination:Solder
- FFC, FCB Thickness:0.30mm
- Height Above Board:0.079" (2.00mm)
- Locking Feature:Flip Lock
- Cable End Type:Straight, Tapered
- Contact Material:Phosphor Bronze
- Contact Finish:Tin Bismuth
- Housing Material:Polyamide (PA46), Nylon 4/6
- Actuator Material:Polyphenylene Sulfide (PPS), Glass Filled
- Features:Solder Retention, Zero Insertion Force (ZIF)
- Voltage Rating:50V
- Operating Temperature:-25°C ~ 85°C
- Material Flammability Rating:UL94 V-0
Related Products

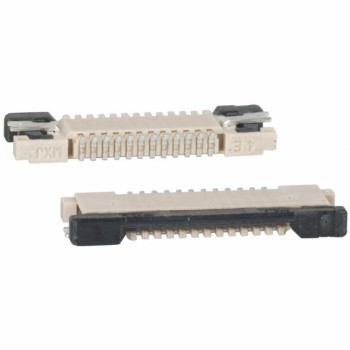

CONN FFC FPC TOP 6POS 0.50MM R/A
Call for price

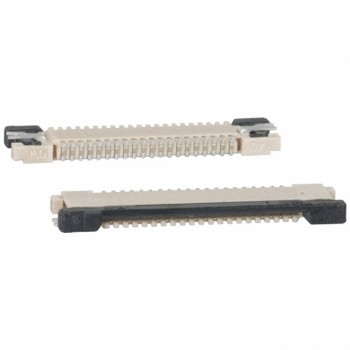

CONN FFC TOP 20POS 0.50MM R/A
