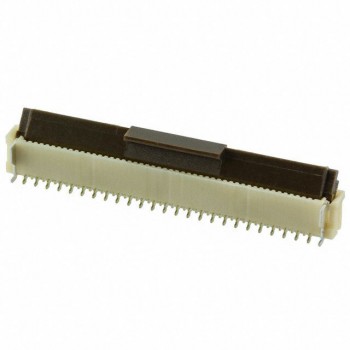

FH12-36S-0.5SV(55)

Technical Details

• Series:FH12
• Package:Tape & Reel (TR)Cut Tape (CT)
• Part Status:Obsolete
• Flat Flex Type:FFC, FPC
• Mounting Type:Surface Mount
• Connector/Contact Type:Contacts, Vertical - 1 Sided
• Number of Positions:36
• Pitch:0.020" (0.50mm)
• Termination:Solder
• FFC, FCB Thickness:0.30mm
• Height Above Board:0.142" (3.60mm)

• Locking Feature:Flip Lock
• Cable End Type:Straight
• Contact Material:Phosphor Bronze
• Contact Finish:Gold
• Housing Material:Polyamide (PA), Nylon
• Actuator Material:Polyphenylene Sulfide (PPS)
• Features:Solder Retention, Zero Insertion Force (ZIF)
• Voltage Rating:50V
• Operating Temperature:-40°C ~ 85°C
• Material Flammability Rating:UL94 V-0
