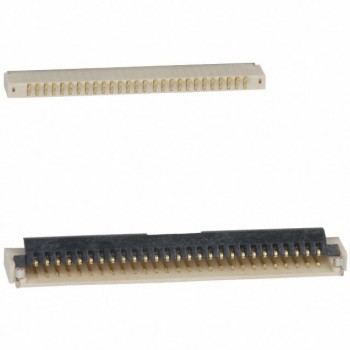

FH19C-30S-0.5SH(05)
Hirose
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN FFC BOTTOM 30POS 0.50MM R/A
- CategoryFFC, FPC (Flat Flexible) Connectors
- Datasheet FH19C-30S-0.5SH(05) Datasheet
-
ECAD Model
- Share
In Stock: 167
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:FH19C
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Flat Flex Type:FFC, FPC
- Mounting Type:Surface Mount, Right Angle
- Connector/Contact Type:Contacts, Bottom
- Number of Positions:30
- Pitch:0.020" (0.50mm)
- Termination:Solder
- FFC, FCB Thickness:0.20mm
- Height Above Board:0.035" (0.88mm)
- Locking Feature:Flip Lock
- Cable End Type:Tapered
- Contact Material:Phosphor Bronze
- Contact Finish:Gold
- Housing Material:Liquid Crystal Polymer (LCP), Halogen Free
- Actuator Material:Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)
- Features:Solder Retention, Zero Insertion Force (ZIF)
- Voltage Rating:50V
- Operating Temperature:-55°C ~ 85°C
- Material Flammability Rating:UL94 V-0
