SFW9R-1STE1
Storage & Server IO (Amphenol ICC)- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN FFC BOTTOM 9POS 1.00MM R/A
- CategoryFFC, FPC (Flat Flexible) Connectors
- Datasheet SFW9R-1STE1 Datasheet
-
ECAD Model
- Share
In Stock: 142
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:SFW-R
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- Flat Flex Type:FFC, FPC
- Mounting Type:Surface Mount, Right Angle
- Connector/Contact Type:Contacts, Bottom
- Number of Positions:9
- Pitch:0.039" (1.00mm)
- Termination:Solder
- FFC, FCB Thickness:0.30mm, 0.33mm
- Height Above Board:0.106" (2.70mm)
- Locking Feature:Slide Lock
- Cable End Type:Straight, Tapered
- Contact Material:Phosphor Bronze
- Contact Finish:Tin Alloy
- Housing Material:Polyphenylene Sulfide (PPS), Glass Filled
- Actuator Material:Polyphenylene Sulfide (PPS), Glass Filled
- Features:Zero Insertion Force (ZIF)
- Voltage Rating:-
- Operating Temperature:-
- Material Flammability Rating:UL94 V-0
Related Products
CONN CIC BOTTOM 24POS 0.80MM R/A
Call for price

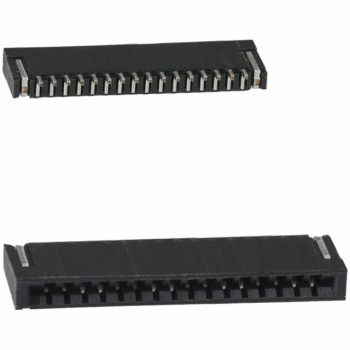

CONN FFC BOTTOM 16POS 1.00MM R/A
