2-84984-9
TE Connectivity AMP Connectors
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN FFC FPC VERT 29POS 1MM PCB
- CategoryFFC, FPC (Flat Flexible) Connectors
- Datasheet 2-84984-9 Datasheet
-
ECAD Model
- Share
In Stock: 104
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:-
- Package:Tube
- Part Status:Obsolete
- Flat Flex Type:FFC, FPC
- Mounting Type:Through Hole
- Connector/Contact Type:Contacts, Vertical - 1 Sided
- Number of Positions:29
- Pitch:0.039" (1.00mm)
- Termination:Kinked Pin
- FFC, FCB Thickness:0.30mm
- Height Above Board:0.220" (5.59mm)
- Locking Feature:-
- Cable End Type:Straight
- Contact Material:Phosphor Bronze
- Contact Finish:Tin
- Housing Material:Polybutylene Terephthalate (PBT), Glass Filled
- Actuator Material:-
- Features:-
- Voltage Rating:125V
- Operating Temperature:-20°C ~ 85°C
- Material Flammability Rating:-
Related Products

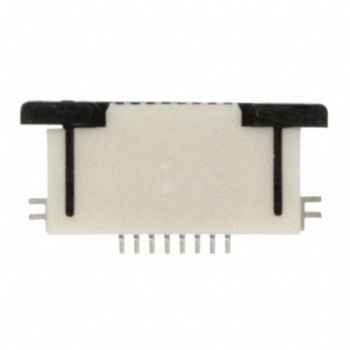

CONN FFC BOTTOM 8POS 0.50MM R/A
Call for price
CONN FFC BOTTOM 12POS 0.50MM R/A
Call for price
CONN FFC BOTTOM 14POS 0.50MM R/A
Call for price

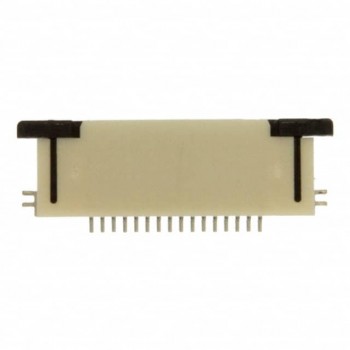

CONN FFC BOTTOM 16POS 0.50MM R/A
Call for price

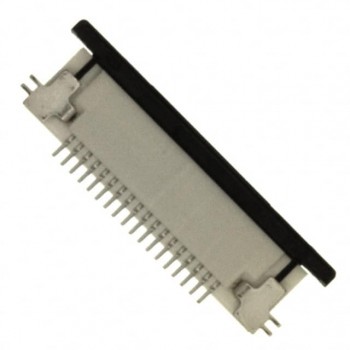

CONN FFC BOTTOM 18POS 0.50MM R/A
Call for price

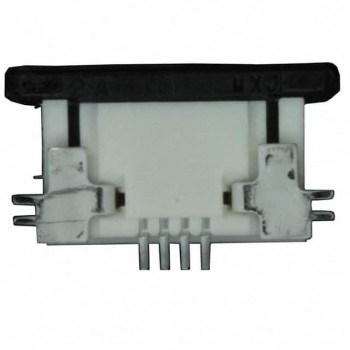

CONN FFC FPC TOP 4POS 0.50MM R/A
Call for price

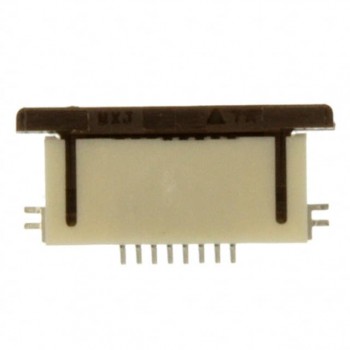

CONN FFC FPC TOP 8POS 0.50MM R/A
Call for price

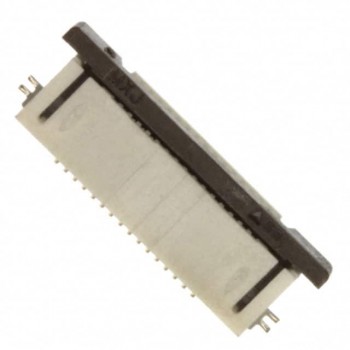

CONN FFC TOP 16POS 0.50MM R/A
Call for price

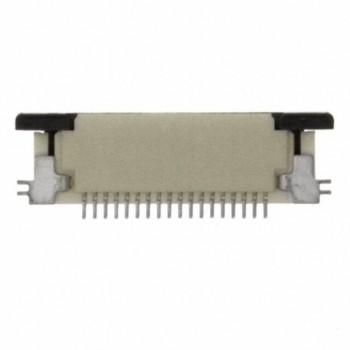

CONN FFC TOP 18POS 0.50MM R/A
