FB8S017JA1
JAE Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN FPC TOP 17POS 0.30MM R/A
- CategoryFFC, FPC (Flat Flexible) Connectors
- Datasheet FB8S017JA1 Datasheet
-
ECAD Model
- Share
In Stock: 176
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:FB8
- Package:Bulk
- Part Status:Obsolete
- Flat Flex Type:FPC
- Mounting Type:Surface Mount, Right Angle
- Connector/Contact Type:Contacts, Top
- Number of Positions:17
- Pitch:0.012" (0.30mm)
- Termination:Solder
- FFC, FCB Thickness:0.20mm
- Height Above Board:0.047" (1.20mm)
- Locking Feature:Rotary Lock
- Cable End Type:Tapered
- Contact Material:Copper Alloy
- Contact Finish:Gold
- Housing Material:Liquid Crystal Polymer (LCP), Glass Filled
- Actuator Material:Polyamide (PA), Nylon, Glass Filled
- Features:Zero Insertion Force (ZIF)
- Voltage Rating:50V
- Operating Temperature:-40°C ~ 85°C
- Material Flammability Rating:UL94 V-0
Related Products

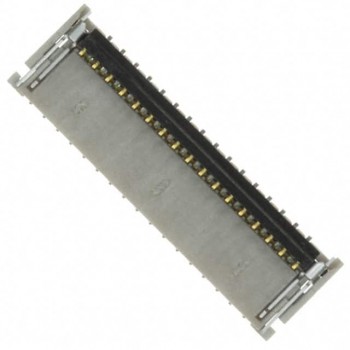

CONN FPC 33POS 0.30MM R/A
- 1: $1.49318
- 18000: $1.49318

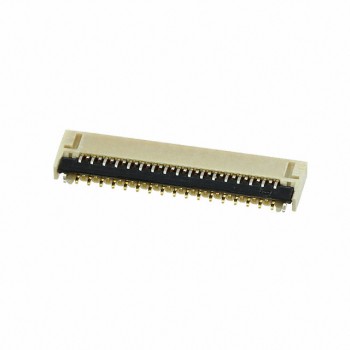

CONN FPC BOTTOM 33POS 0.30MM R/A
Call for price

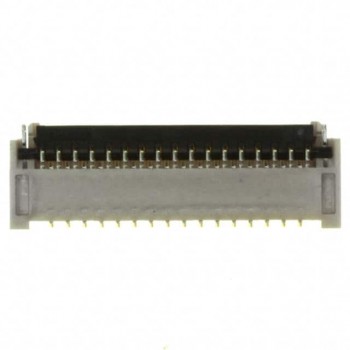

CONN FPC BOTTOM 31POS 0.30MM R/A
Call for price

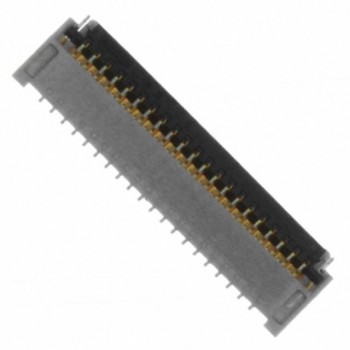

CONN FPC BOTTOM 33POS 0.30MM R/A
Call for price

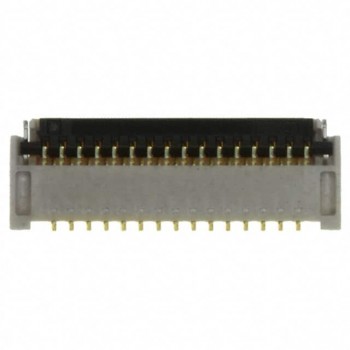

CONN FPC BOTTOM 41POS 0.30MM R/A
Call for price

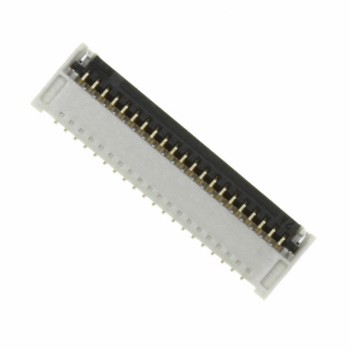

CONN FPC BOTTOM 41POS 0.30MM R/A
