543932181
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant

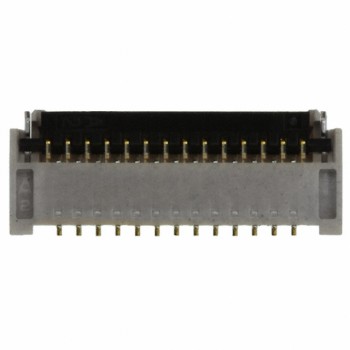

- DescriptionCONN FPC BOTTOM 21POS 0.30MM R/A
- CategoryFFC, FPC (Flat Flexible) Connectors
-
ECAD Model
- Share
In Stock: 126
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:Easy-On 54393
- Package:Tape & Reel (TR)
- Part Status:Obsolete
- Flat Flex Type:FPC
- Mounting Type:Surface Mount, Right Angle
- Connector/Contact Type:Contacts, Bottom
- Number of Positions:21
- Pitch:0.012" (0.30mm)
- Termination:Solder
- FFC, FCB Thickness:0.20mm
- Height Above Board:0.077" (1.95mm)
- Locking Feature:Flip Lock
- Cable End Type:Tapered
- Contact Material:Phosphor Bronze
- Contact Finish:Gold
- Housing Material:Liquid Crystal Polymer (LCP)
- Actuator Material:Polyphenylene Sulfide (PPS)
- Features:Solder Retention, Zero Insertion Force (ZIF)
- Voltage Rating:50V
- Operating Temperature:-20°C ~ 85°C
- Material Flammability Rating:UL94 V-0
