5027614900
Woodhead - Molex
- Lifecycle status Active
- RoHS RoHS Compliant

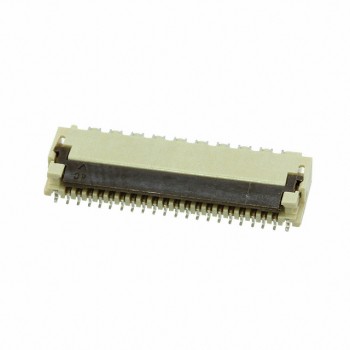

- DescriptionCONN FPC BOTTOM 49POS 0.30MM R/A
- CategoryFFC, FPC (Flat Flexible) Connectors
- Datasheet 5027614900 Datasheet
-
ECAD Model
- Share
In Stock: 168
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:Easy-On 502761
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Active
- Flat Flex Type:FPC
- Mounting Type:Surface Mount, Right Angle
- Connector/Contact Type:Contacts, Bottom
- Number of Positions:49
- Pitch:0.012" (0.30mm)
- Termination:Solder
- FFC, FCB Thickness:0.12mm
- Height Above Board:0.024" (0.61mm)
- Locking Feature:Flip Lock
- Cable End Type:Tabbed
- Contact Material:Copper Alloy
- Contact Finish:Gold
- Housing Material:Liquid Crystal Polymer (LCP), Glass Filled
- Actuator Material:Liquid Crystal Polymer (LCP), Glass Filled
- Features:-
- Voltage Rating:50V
- Operating Temperature:-40°C ~ 85°C
- Material Flammability Rating:UL94 V-0
