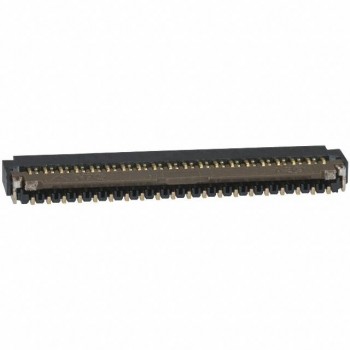

FH26W-25S-0.3SHW(99)
Hirose
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN FPC BOTTOM 25POS 0.30MM R/A
- CategoryFFC, FPC (Flat Flexible) Connectors
- Datasheet FH26W-25S-0.3SHW(99) Datasheet
-
ECAD Model
- Share
In Stock: 192
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:FH26
- Package:Tape & Reel (TR)Cut Tape (CT)
- Part Status:Obsolete
- Flat Flex Type:FPC
- Mounting Type:Surface Mount, Right Angle
- Connector/Contact Type:Contacts, Bottom
- Number of Positions:25
- Pitch:0.012" (0.30mm)
- Termination:Solder
- FFC, FCB Thickness:0.20mm
- Height Above Board:0.039" (1.00mm)
- Locking Feature:Flip Lock
- Cable End Type:Tapered
- Contact Material:Phosphor Bronze
- Contact Finish:Gold
- Housing Material:Liquid Crystal Polymer (LCP)
- Actuator Material:Polyamide (PA), Nylon
- Features:Zero Insertion Force (ZIF)
- Voltage Rating:30V
- Operating Temperature:-55°C ~ 85°C
- Material Flammability Rating:UL94 HB
