1687736
Phoenix Contact
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionCONN HOOD CPLNG BOTTOM SZB16
- CategoryHeavy Duty Connectors - Housings, Hoods, Bases
- Datasheet 1687736 Datasheet
-
ECAD Model
- Share
In Stock: 185
Can ship immediately
Pricing:
Call for price or sumbit a RFQ
Quote It
Technical Details
- Series:HEAVYCON® B
- Package:Bulk
- Part Status:Obsolete
- Connector Type:Hood - Coupling
- Style:Bottom Entry
- Size:B16
- Lock Location:Locking Clip (1) on Hood Top
- Thread Size:PG29
- Size / Dimension:3.701" L x 1.693" W x 3.150" H (94.00mm x 43.00mm x 80.00mm)
- Housing Color:Gray
- Features:Cable to Cable
- Ingress Protection:IP65 - Dust Tight, Water Resistant
- Housing Material:Aluminum, Die Cast
- Housing Finish:Powder Coated
- Operating Temperature:-40°C ~ 125°C
Related Products
CONN MODULE BOTTOM ENTRY
Call for price

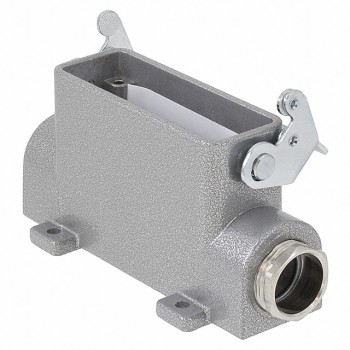

CONN BASE SIDE ENTRY SZB16 PG29
