WR15AT
NKK Switches
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionSWITCH ROCKER SPDT 15A 125V
- CategoryRocker Switches
- Datasheet WR15AT Datasheet
-
ECAD Model
- Share
In Stock: 197
Can ship immediately
Pricing:
- 1$15.38
- 10$14.16579
- 25$13.76105
- 50$13.35631
- 100$12.95158
- 250$11.73736
- 500$10.9279
- 1,000$10.52316
Quote It
Technical Details
- Series:WR
- Package:Bulk
- Part Status:Active
- Mounting Type:Panel Mount, Snap-In
- Circuit:SPDT
- Switch Function:On-Mom
- Current Rating (Amps):15A (AC/DC)
- Voltage Rating - AC:125 V
- Voltage Rating - DC:30 V
- Actuator Type:Concave (Curved)
- Color - Actuator/Cap:Black
- Actuator Marking:No Marking
- Illumination Type, Color:-
- Illumination Voltage (Nominal):-
- Termination Style:Screw Terminal
- Ingress Protection:IP67 - Dust Tight, Waterproof
- Features:Epoxy Sealed Terminals
- Panel Cutout Dimensions:Rectangular - 34.20mm x 17.20mm
- Operating Temperature:-25°C ~ 85°C
Related Products

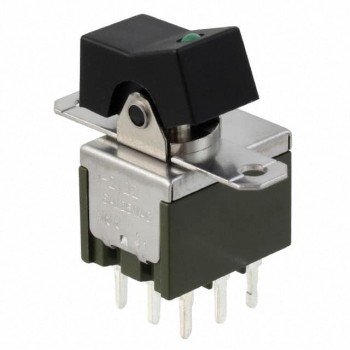

SPDT (ON)-OFF-(ON) NEON LAMP YEL
