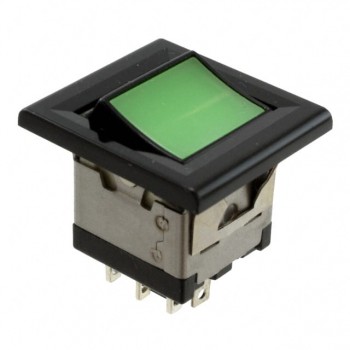

LW3122-N4CE-A
NKK Switches
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionSWITCH ROCKER DPDT 10A 125V
- CategoryRocker Switches
- Datasheet LW3122-N4CE-A Datasheet
-
ECAD Model
- Share
In Stock: 117
Can ship immediately
Pricing:
- 1$18.755
- 100$18.755
Quote It
Technical Details
- Series:LW
- Package:Bulk
- Part Status:Active
- Mounting Type:Panel Mount, Snap-In
- Circuit:DPDT
- Switch Function:On-On
- Current Rating (Amps):10A (AC), 6A (DC)
- Voltage Rating - AC:125 V
- Voltage Rating - DC:30 V
- Actuator Type:Concave (Standard V) - Illuminated
- Color - Actuator/Cap:Clear (Red, Yellow Filter/Diffuser)
- Actuator Marking:No Marking
- Illumination Type, Color:Neon, Red/Yellow
- Illumination Voltage (Nominal):110 VAC
- Termination Style:Solder Lug
- Ingress Protection:-
- Features:-
- Panel Cutout Dimensions:Rectangular - 32.00mm x 19.80mm
- Operating Temperature:-20°C ~ 50°C
