SMI24-48-K-P6R
CUI Inc.
- Lifecycle status Active
- RoHS RoHS Compliant

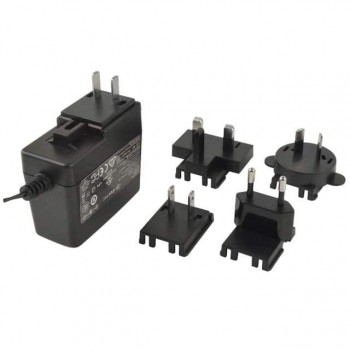

- DescriptionAC/DC WALL MOUNT ADAPTER 48V 24W
- CategoryAC DC Desktop, Wall Adapters
- Datasheet SMI24-48-K-P6R Datasheet
-
ECAD Model
- Share
In Stock: 200
Can ship immediately
Pricing:
- 1$12.2759
- 600$12.2759
Quote It
Technical Details
- Series:SMI24 (24W)
- Package:Box
- Part Status:Active
- Region Utilized:International
- Form:Wall Mount (Class II)
- Input Type:Multi-Blade (Sold Separately)
- Voltage - Input:90 ~ 264 VAC
- Voltage - Output:48V
- Current - Output (Max):500mA
- Power (Watts):24 W
- No Load Power Consumption:100mW (Max)
- Polarization:Positive Center
- Applications:ITE (Commercial)
- Efficiency:Level VI, CoC Tier 2
- Operating Temperature:0°C ~ 40°C
- Output Connector:Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
- Cord Length:59" (1.50m)
- Input Connector:Multi-Blade
- Size / Dimension:2.95" L x 1.38" W x 2.58" H (75.0mm x 35.0mm x 65.6mm)
- Approval Agency:CB Scheme, CCC, CSA, EN, IEC, PSE, RCM, UL
- Standard Number:C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1
