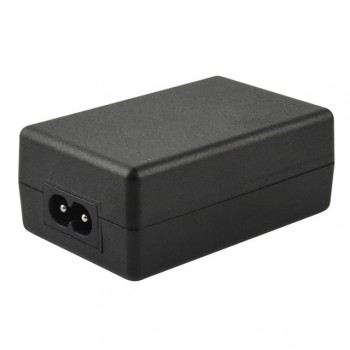

SDI12-18-UDC-P6R
CUI Inc.
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionAC/DC DESKTOP ADAPTER 18V 12W
- CategoryAC DC Desktop, Wall Adapters
- Datasheet SDI12-18-UDC-P6R Datasheet
-
ECAD Model
- Share
In Stock: 142
Can ship immediately
Pricing:
- 1$13.3798
- 540$13.3798
Quote It
Technical Details
- Series:SDI12-UD (12W)
- Package:Box
- Part Status:Active
- Region Utilized:North America
- Form:Desktop (Class II)
- Input Type:Cord
- Voltage - Input:90 ~ 264 VAC
- Voltage - Output:18V
- Current - Output (Max):660mA
- Power (Watts):12 W
- No Load Power Consumption:100mW (Max)
- Polarization:Positive Center
- Applications:ITE (Commercial)
- Efficiency:Level VI, CoC Tier 2
- Operating Temperature:0°C ~ 40°C
- Output Connector:Barrel Plug R/A, 2.5mm I.D. x 5.5mm O.D. x 9.5mm
- Cord Length:59" (1.50m)
- Input Connector:IEC 320-C8
- Size / Dimension:2.95" L x 1.89" W x 1.18" H (75.0mm x 48.0mm x 30.0mm)
- Approval Agency:CB Scheme, CSA, EN, FCC, IEC, PSE, UL
- Standard Number:C22.2 No. 60950-1; 55024; 55032 Class B; 60950-1; 61000-3-2; 61000-3-3; 62368-1
