MC74HC00AFL1

Rochester Electronics
  • Lifecycle status Active
  • RoHS RoHS Compliant
  • DescriptionIC GATE NAND 4CH 2-INP SOEIAJ-14
  • CategoryLogic - Gates and Inverters
  • ECAD Model
  • Share
In Stock: 10,181

Can ship immediately

Pricing:
  • 1$0.12

Quote It

Technical Details

  • Series:74HC
  • Package:Bulk
  • Part Status:Active
  • Logic Type:NAND Gate
  • Number of Circuits:4
  • Number of Inputs:2
  • Features:-
  • Voltage - Supply:2V ~ 6V
  • Current - Quiescent (Max):1 µA



  • Current - Output High, Low:5.2mA, 5.2mA
  • Logic Level - Low:0.5V ~ 1.8V
  • Logic Level - High:1.5V ~ 4.2V
  • Max Propagation Delay @ V, Max CL:13ns @ 6V, 50pF
  • Operating Temperature:-55°C ~ 125°C
  • Mounting Type:Surface Mount
  • Supplier Device Package:SOEIAJ-14
  • Package / Case:14-SOIC (0.209", 5.30mm Width)

Related Products


74VCX32MTCX

IC GATE OR 4CH 2-INP 14TSSOP

74VCX32MTCX Datasheet
  • 1: $0.12000

MC74F10N

NAND GATE, F/FAST SERIES, 3 FUNC

  • 1: $0.12000

74AC32SJ

IC GATE OR 4CH 2-INP 14SOP

74AC32SJ Datasheet
  • 1: $0.12000

SC14S70FEL

LOG CMOS XCLUSIVE OR GATE

  • 1: $0.12000

74HC20FP-E

IC GATE NAND 2CH 4 INP

  • 1: $0.12000

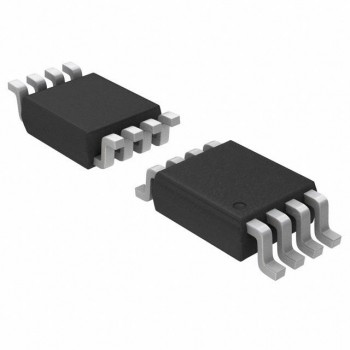

NL37WZ06US
