74LVC2G02GD,125
Rochester Electronics
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionFUNC, 2 INPUT, CMOS, PDSO8
- CategoryLogic - Gates and Inverters
- Datasheet 74LVC2G02GD,125 Datasheet
-
ECAD Model
- Share
In Stock: 172,725
Can ship immediately
Pricing:
- 1$0.14
Quote It
Technical Details
- Series:74LVC
- Package:Bulk
- Part Status:Active
- Logic Type:NOR Gate
- Number of Circuits:2
- Number of Inputs:2
- Features:-
- Voltage - Supply:1.65V ~ 5.5V
- Current - Quiescent (Max):4 µA
- Current - Output High, Low:32mA, 32mA
- Logic Level - Low:0.7V ~ 0.8V
- Logic Level - High:1.7V ~ 2V
- Max Propagation Delay @ V, Max CL:4.3ns @ 5V, 50pF
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Supplier Device Package:8-XSON (2x3)
- Package / Case:8-XFDFN
Related Products

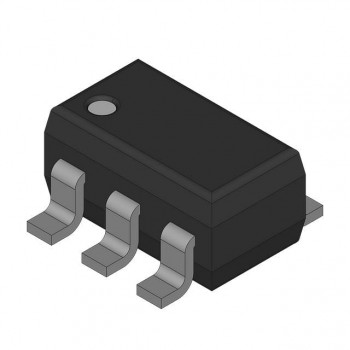

IC INVERTER 2CH 1-INP SC88
- 1: $0.14000

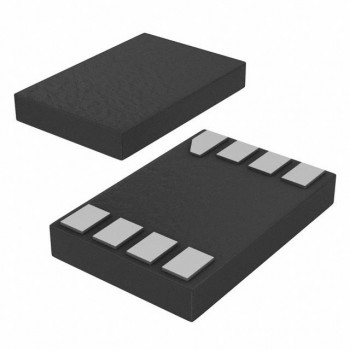

AND GATE, AXP SERIES
- 1: $0.14000

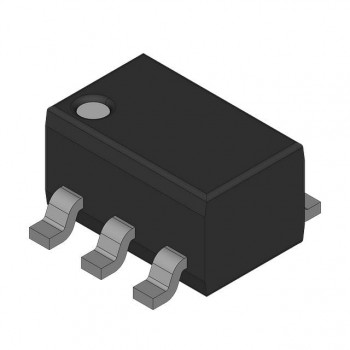

IC INVERT SCHMITT 2CH 1-INP SC88
