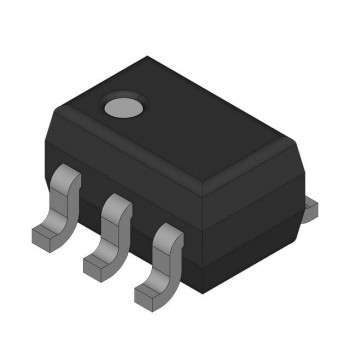

SN74AHC1G00DCK3
Texas Instruments
- Lifecycle status Active
- RoHS RoHS Compliant
- DescriptionIC GATE NAND 1CH 2-INP SC70-5
- CategoryLogic - Gates and Inverters
-
ECAD Model
- Share
In Stock: 4,339
Can ship immediately
Pricing:
- 1$0.4
Quote It
Technical Details
- Series:74AHC
- Package:Tube
- Part Status:Active
- Logic Type:NAND Gate
- Number of Circuits:1
- Number of Inputs:2
- Features:-
- Voltage - Supply:2V ~ 5.5V
- Current - Quiescent (Max):1 µA
- Current - Output High, Low:8mA, 8mA
- Logic Level - Low:0.5V ~ 1.65V
- Logic Level - High:1.5V ~ 3.85V
- Max Propagation Delay @ V, Max CL:7.5ns @ 5V, 50pF
- Operating Temperature:-40°C ~ 125°C
- Mounting Type:Surface Mount
- Supplier Device Package:SC-70-5
- Package / Case:5-TSSOP, SC-70-5, SOT-353
